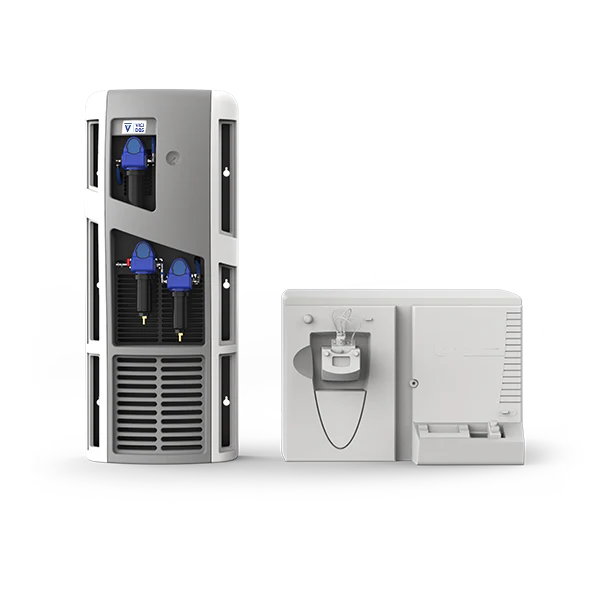

Whisper 0-40 Hybrid P-E Dual Nitrogen Generator
Price: Quote Only
–+
The Whisper 0-40 Hybrid P-E Dual Nitrogen Generator has been developed to meet flow, purity, and pressure requirements for LCMS applications that also require filtered and dried air. It can also be used for the evaporation of solvents in samples being analyzed. The simple, high efficiency membrane technology separates nitrogen from the other components of a compressed air supply. The low pressure drop, 1 barg (14.5 psig), means that the Whisper can share a dry, oil-free compressed air source already in the lab.
WHISPER 0-40 HYBRID FEATURES:
▪︎ Flow rate: curtain gas 15 @ 7 barg (100 psig), source gas 70 @ 7 barg (100 psig)
▪︎ Purity 99%
▪︎ Pressure up to 7 barg (100 psig)
▪︎ Minimal maintenance
▪︎ Integrated economy mode as standard
▪︎ Proprietary membrane technology
▪︎ 2 year standard warranty
PRODUCTS FOR LC/MS INSTRUMENTS
▪︎ NEBULIZING GAS
▪︎ SHIELD GAS
▪︎ SHEATH GAS
▪︎ ELECTROSPRAY GAS
▪︎ SCIEX LC/MS
▪︎ SHIMADZU LC/MS
The following options are available:
▪︎ N/A
| Curtain gas flow rate L/min - Nitrogen | 15 @ 7 barg (100 psig) |
| Exhaust gas flow rate L/min - dry air | N/A |
| Source gas flow rate L/min- dry air | 70 @ 7 barg (100 psig) |
| Nitrogen Purity at max flow rate | 99% |
| Dew point | -40 ºC (-40 ºF) |
| Outlet pressure barg (psig) | 7 (100) |
| Inlet pressure barg (psig) | 8.5 to 10 (123 to 160) |
| Actual inlet air requirement liters | 220 |
| Recommended compressor air requirements | 440 |
| Pressure drop barg (psig) | 1.5 (22) |
| Inlet air quality | Clean dry compressed air ISO8573-1:2010 Class 1.2.1 |
| Technology | Membrane |
| Warm up time minutes | None |
| Electrical supply | None |
| Noise level | None |
| Product dimensions mm (in) | 480W x 1300H x 300D (18.9W x 51H x 11.8D) |
| Product weight kg (lb) | 25 (55) |
| Shipping dimensions mm (in) | 1600W x 400H x 590D (63W x 15.7H x 23.2D) |
| Shipping weight kg (lb) | 32 (71) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Inlet connection | 3/8" G |
| Outlet connection | 6mm or 1/4" OD compression |
| Certification | CE |
