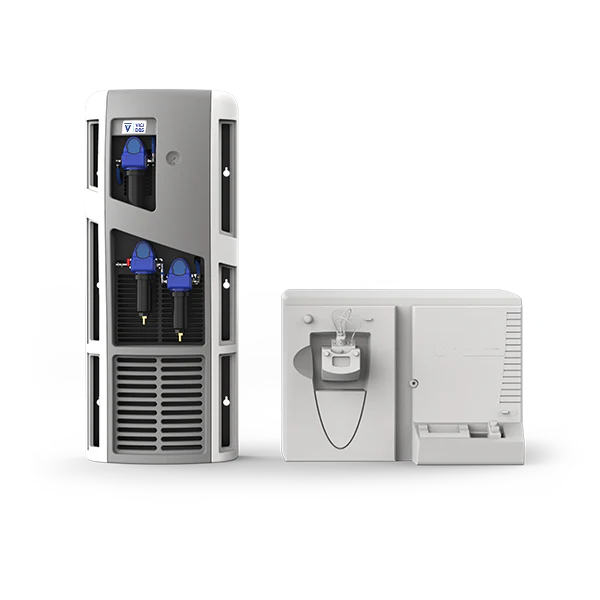

Whisper 0-120 Nitrogen Generator
Price: Quote Only
–+
The Whisper 0-120 Nitrogen Generator has been developed to meet the flow, purity and pressure requirements of LCMS applications. It can also be used for the evaporation of solvents in samples being analyzed. The simple, high efficiency membrane technology separates nitrogen from the other components of a compressed air supply. The low pressure drop, 1 barg (14.5 psig), means that the Whisper can share a dry, oil-free compressed air source already in the lab.
WHISPER 0-120 FEATURES:
▪︎ Flow rate 120 L/min
▪︎ Purity: 95% @ 120 L/min / 98% @ 50 L/min
▪︎ Pressure up to 10 barg (160 psig)
▪︎ Minimal maintenance
▪︎ Integrated economy mode as standard
▪︎ Proprietary membrane technology
▪︎ 2 year standard warranty
PRODUCTS FOR LC/MS INSTRUMENTS
▪︎ NEBULIZING GAS
▪︎ CURTAIN GAS
▪︎ SHIELD GAS
▪︎ SHEATH GAS
▪︎ ELECTROSPRAY GAS
▪︎ APCI GAS
▪︎ JET STREAM GRADIENT
PRODUCTS FOR SPECTROSCOPY
▪︎ NUCLEAR MAGNETIC RESONANCE SPECTROMETERS (NMR)
PRODUCTS FOR ANALYZERS
▪︎ THERMAL ANALYZERS (TGA/DSC)
OTHER LAB APPLICATIONS
▪︎ SAMPLE CONCENTRATORS
▪︎ EVAPORATIVE LIGHT SCATTERING DETECTOR (ELSD)
▪︎ CORONA DETECTORS
▪︎ CHARGED AEROSOL (CAD)
▪︎ SAMPLE EVAPORATORS
▪︎ CELL INCUBATORS
▪︎ IVF STEM CELL INCUBATORS
▪︎ MASK ALIGNER
▪︎ FUME HOOD/ CABINET PURGE
▪︎ 3D PRINTER INERTING
▪︎ GLOVE BOX PURGE
The following options are available:
▪︎ 10 Lt. Tank
▪︎ 10 mt. Tube
▪︎ Special 100% PTFE tubing
| Flow L/min | 120 |
| Purity | 95% @120 L/min 98% & 50 L/min |
| Dew point | -50ºC (-58 ºF) |
| Outlet pressure barg (psig) | 7 (100) |
| Inlet pressure barg (psig) | 8.5 to 10 (123 to 160) |
| Actual inlet air requirement liters | 245 |
| Recommended compressor air inlet | 490 |
| Pressure drop barg (psig) | 1.5 (22) |
| Inlet air quality | Clean dry compressed air ISO8573-1:2010 Class 1.2.1 |
| Technology | Membrane |
| Warm up time minutes | none |
| Electrical supply | none |
| Noise level | none |
| Product dimensions mm (in) | 480W x 1300H x 300D (18.9W x 23.2H x 14.7D) |
| Product weight kg (lb) | 20 (44) |
| Shipping dimensions mm (in) | 1600W x 400H x 590D (63W x 15.7H x 23.2D) |
| Shipping weight kg (lb) | 27 (60) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Inlet connection | 3/8" G |
| Outlet connection | 1/4" compression |
| Certification | CE |
