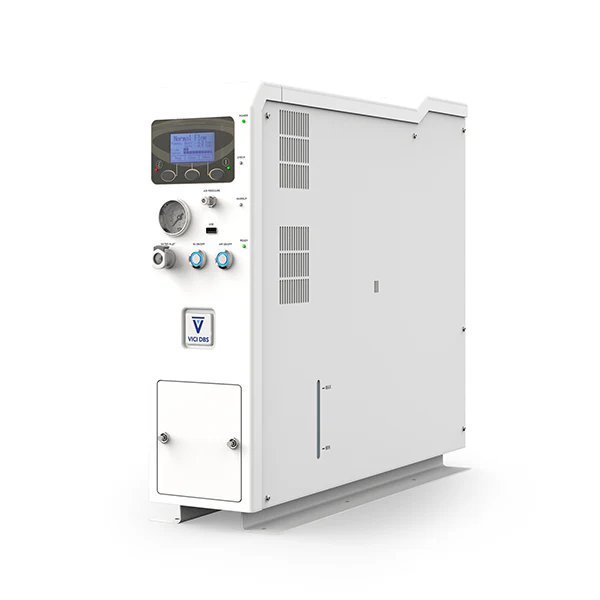

PG Plus 100 FID Tower Hydrogen Generator
Price: Quote Only
–+
The space-saving PG Plus 100 FID Tower Hydrogen Generator uses the latest proton exchange membrane (PEM) technology to produce pure hydrogen.
De-ionized water is automatically loaded from smart internal system tanks with a 3 liter capacity, providing up to 3000 liters of H2 before a refill is required. The only recommended maintenance is replacement of the internal deionizing cartridge, which has been greatly simplified.
PG PLUS 100 FID TOWER FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity >99.9996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty
Part# DB-FTHG100-EU (230-240V/50-60Hz)
Part# DB-FTHG100-US (115V/60Hz)
Part# DB-FTHG100-JP (100V/60Hz)

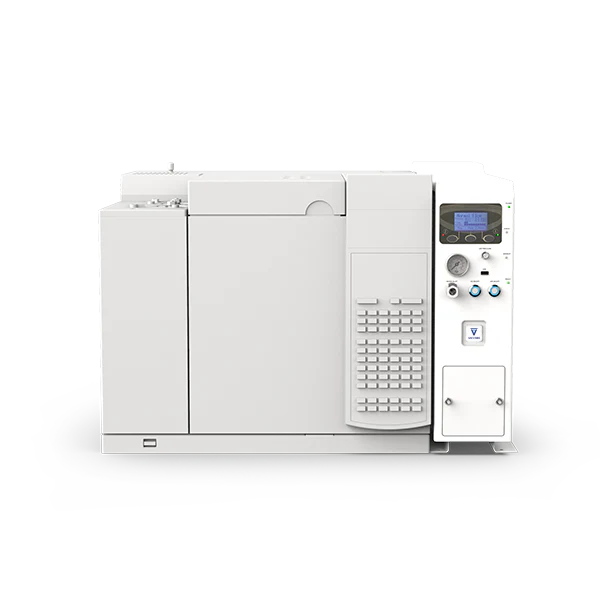

GC APPLICATIONS
▪︎ GC-FID FUEL GAS
▪︎ GC-FPD FUEL GAS
▪︎ GC-NPD PLASMA GAS
ANALYZER APPLICATIONS
▪︎ TOTAL HYDOCARBON ANALYZER (THA) FUEL GAS
OTHER LAB APPLICATIONS
▪︎ HYDROGEN REACTORS
▪︎ HYDROGEN FUEL CELLS
The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)
▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor
| Flow mL/min | 100 |
| Purity | >99.9996% |
| Dew point at 7 barg (100 psig) | -25 ºC (-77 ºF) |
| Outlet pressure barg (psig) | 0.5 to 11 (7 to 160) |
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell |
| Drying system | Regenerative Permeation Membrane |
| Deionized water quality | minimum <1 μS/cm @25 ºC - 1 MΩ-cm@25 ºC - ASTM II recommended <0.2 μS/cm @25 ºC - 5 MΩ-cm @25 ºC - ASTM II |
| Internal water tank liters | 5 |
| Safety | Automatic shut down - internal/external hydrogen leak, overpressure and low water |
| Display | Touch screen with operating parameters, system status and safety alarms |
| LED indicators | Power on/off, system ready, errors |
| Interface | USB mod A |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 65 |

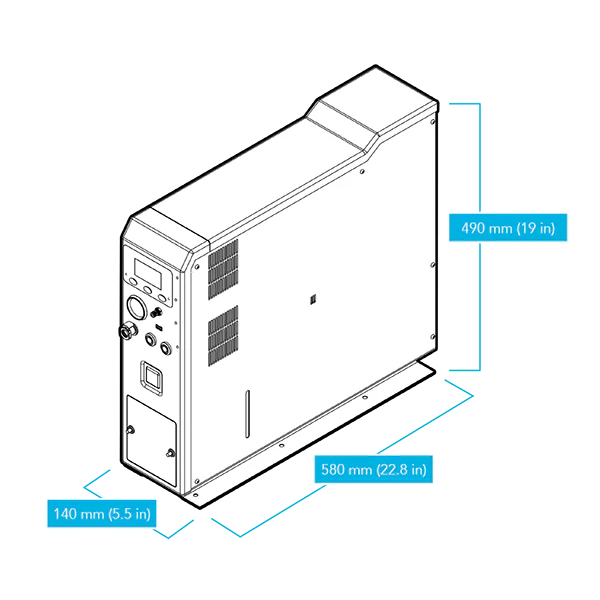

| Product Dimensions mm (in) | 140W x 490H x 580D (5.5W x 19H x 22.8D) |
| Product Weight kg (lb) | 22(48.5) |
| Shipping Dimensions mm (in) | 770W x 590H x 410D (30.3W x 23.2H x 16.1D) |
| Shipping weight kg (lb) | 26 (57) |
| Operating temperature ºC (oF) | 15 to 35 (59 to 95) |
| Outlet connection | 1/8" compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
