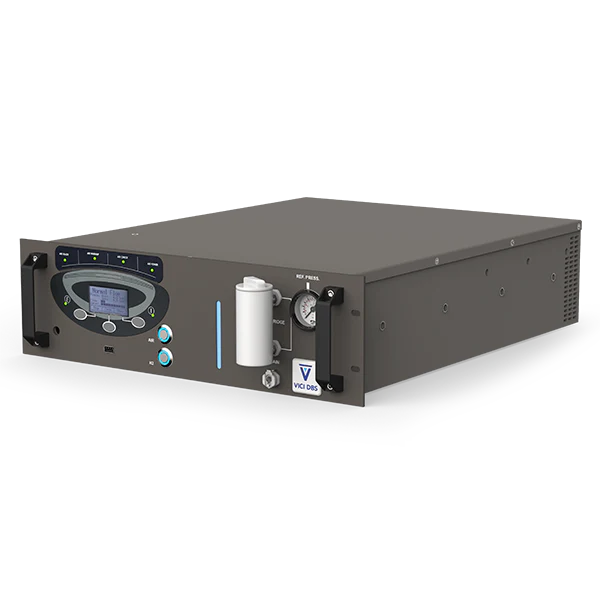

NM Plus 160 Rack Hydrogen Generator
Price: Quote Only
–+
The NM Plus 160 Rack Hydrogen Generator uses the latest proton exchange membrane (PEM) technology to produce high purity hydrogen. The exclusive “No Maintenance” gas column cold regeneration system eliminates all the down time for maintenance that is typical of other systems on the market, assuring the best hydrogen purity at all times.
NM PLUS 160 RACK FEATURES:
▪︎ Flow rate 160 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty
Part# DB-RNM160-EU (230-240V/50-60Hz)
Part# DB-RNM160-US (115V/60Hz)
Part# DB-RNM160-JP (100V/60Hz)
PRODUCTS FOR ANALYZERS
▪︎ PROCESS GC ANALYZERS DETECTOR FUEL & OXIDANT GAS
▪︎ EMISSIONS TEST ANALYZERS FUEL & OXIDANT GAS
▪︎ STACK GAS ANALYZERS FUEL & OXIDANT GAS
OTHER LAB APPLICATIONS
▪︎ ONBOARD GAS SUPPLY FOR MOBILE LABORATORIES
The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)

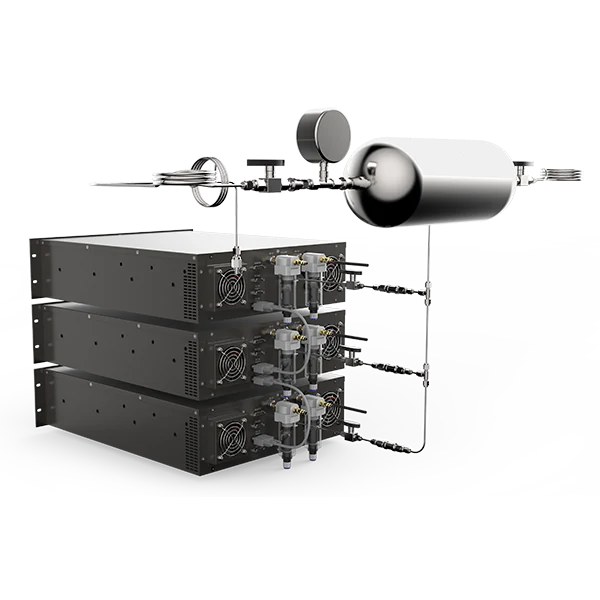

▪︎ Cascading hardware (standard or high purity)
▪︎ Refill station (water tank) 3U or 2U
▪︎ Rack enclosure
| Flow mL/min | 160 |
| Purity | >99.99996%+ |
| Dewpoint at 7 barg (100 psig) | -73 ºC (-103 ºF) |
| Outlet pressure barg (psig) | 1.4 to 11 (20 to 160) |
| Technology | PEM (Proton Exchange Membrane) - 100% titanium cell |
| Drying system | No maintenance cold dual dynamic regeneration system |
| Deionized water quality | Minimum <1 μS/cm @25 ºC - 1 MΩ-cm@25 ºC - ASTM II Recommended <0.2 μS/cm @25 ºC - 5 MΩ-cm @25 ºC - ASTM II |
| External water tank (liters) | External 10 liter bottle and internal pump |
| Safety | Automatic shut down - internal/external hydrogen leak, overpressure and low water |
| Display | Touch screen with operating parameters, system status and safety alarms |
| LED indicators | Power on/off, system ready, errors |
| Interface | USB mod A |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 115 |
| Product dimensions mm (in) | 19" rack W x 3U H x 500D (19.6) |
| Product weight kg (lbs) | 19 (41.9) |
| Shipping dimensions mm (in) | 720W x 375H x 565D (28.3W x 14.7H x 22.2D) |
| Shipping weight kg (lbs) | 23 (50) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Outlet connection | 1/8" compression |
| Certification | CE, FCC, MET (UL and CSA compliant) |
