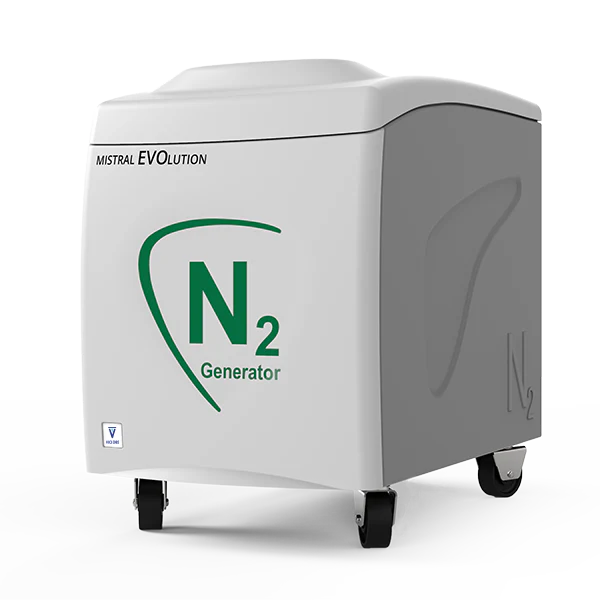

Mistral Evolution 10 Nitrogen Generator
Price: Quote Only
–+
The Mistral Evolution 10 Nitrogen Generator (PSA technology), which includes an integral oil-free air compressor, delivers a continuous stream of pure nitrogen gas of >99.5% at a flow rate of 10 L/min. It uses the pressure swing adsorption (PSA) system that removes oxygen, carbon dioxide, and water from compressed air. The resulting stream of pure nitrogen is ideal for LCMS techniques and other inert gas applications.
MISTRAL EVOLUTION 10 FEATURES:
▪︎ Flow rate 10 L/min
▪︎ Purity >99.5%
▪︎ Pressure up to 3 barg (43 psig)
▪︎ Oil free, low noise compressor options
▪︎ Proprietary carbon molecular sieve technology

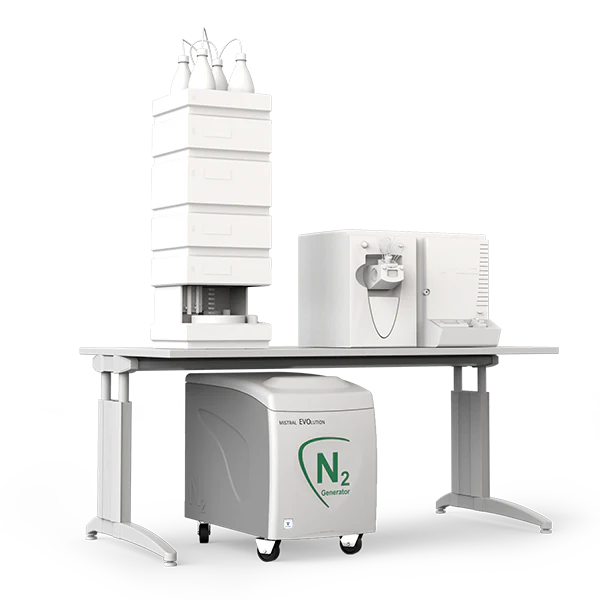

▪︎ Complete "plug and play" LC/MS solution
▪︎ 2 year standard warranty
PRODUCTS FOR LC/MS INSTRUMENTS
▪︎ NEBULIZING GAS
▪︎ CURTAIN GAS
▪︎ SHIELD GAS
▪︎ SHEATH GAS
▪︎ ELECTROSPRAY GAS
▪︎ APCI GAS
▪︎ JET STREAM GRADIENT
PRODUCTS FOR SPECTROSCOPY
▪︎ NUCLEAR MAGNETIC RESONANCE SPECTROMETERS (NMR)
PRODUCTS FOR ANALYZERS
▪︎ THERMAL ANALYZERS (TGA/DSC)
OTHER LAB APPLICATIONS
▪︎ SAMPLE CONCENTRATORS
▪︎ EVAPORATIVE LIGHT SCATTERING DETECTOR (ELSD)
▪︎ CORONA DETECTORS
▪︎ CHARGED AEROSOL (CAD)
▪︎ SAMPLE EVAPORATORS
▪︎ CELL INCUBATORS
▪︎ IVF STEM CELL INCUBATORS
▪︎ MASK ALIGNER
▪︎ FUME HOOD/ CABINET PURGE
▪︎ 3D PRINTER INERTING
▪︎ GLOVE BOX PURGE
The following option is available:
▪︎ 10 liter tank
| Nitrogen flow rate L/min | 10 |
| Nitrogen Purity | >99.5% |
| Dewpoint ºC (ºF) | -50(-58) |
| Outlet pressure barg (psig) | 3 (45) |
| Technology | Carbon molecular sieve |
| Warm up time (minutes) | 20 |
| LED indicators | Power on/off, system ready, errors |
| Electrical supply | 220-240V 50Hz / 110-120V 60Hz NEMA 5-20P |
| Power consumption watts | 1800 |

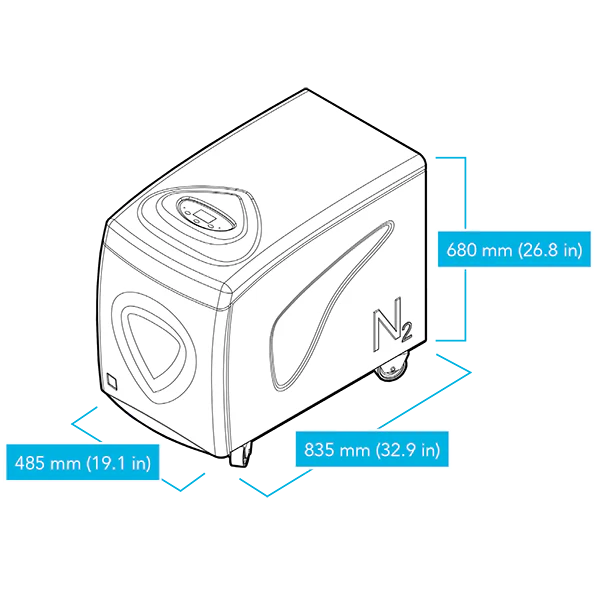

| Product dimensions mm (in) | 482W x 641H x 835D (18.9W x 25H x 37D) |
| Product weight kg (lbs) | 90 (198) |
| Shipping dimenisons mm (in) | 550W x 800H x 940D (21.6W x 31.4H x 37D) |
| Shipping weight kg (lbs) | 115 (254) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Outlet connection | 6mm OD compression or 1/4'' |
| Certification | CE, FCC, MET (UL and CSA compliant) |
