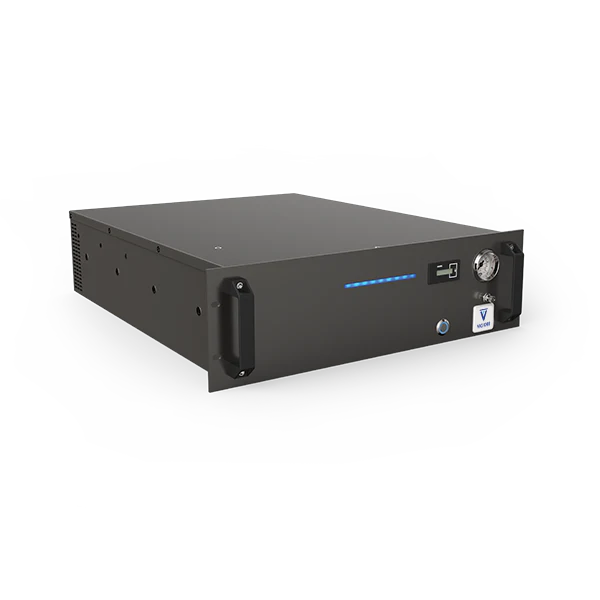

HP Plus 500 Rack Nitrogen Generator
Price: Quote Only
–+
The new HP Plus 500 Rack Nitrogen Generator produces nitrogen by utilizing a combination of filtration and pressure swing adsorption (PSA) technology. Standard compressed air is filtered by high efficiency coalescing filters to remove all contaminants down to 5 µ. For ultra sensitive applications the 19” rack units also include the additional heated catalyst module to ensure hydrocarbons are removed to <0.1 ppm. The air then passes through two columns filled with a carbon molecular sieve (CMS) which removes O2, CO2 and moisture. These are desorbed to atmosphere during the pressure swing cycle leaving a supply of ultra pure nitrogen.
HP PLUS 500 RACK FEATURES:
▪︎ Flow rate 500 mL/min
▪︎ Purity >99.999%
▪︎ Pressure up to 5 barg (75 psig)
▪︎ Proprietary carbon molecular sieve
▪︎ Ideal for analyzer applications
▪︎ 2 year standard warranty
GC APPLICATIONS
▪︎ Online GC-FID
▪︎ MUDD Logging
▪︎ Carrier gas and make up gas
▪︎ Total Hydrocarbon Analyzer (THA) fuel gas
NA
| Flow ml/min | 500 |
| Purity | >99.999% |
| Hydrocarbon purity (measured as methane) | <0.1 ppm |
| Dewpoint ºC (ºF) | -50 (-58) |
| Outlet pressure barg (psig) | up to 5 (75) |
| Inlet pressure barg (psig) | 7 to 10 (100 to 160) |
| Actual inlet air requirement litres at 8 bar (116 psig) | 11 |
| Recommended compressor air inlet at 8 bar (116 psig) | 22 |
| Pressure drop barg (psig) | 1.5 (22) |
| Inlet air quality | Clean dry compressed air ISO8573-1:2010 Class 1.2.1 |
| Technology | Carbon molecular sieve |
| Warm up time (minutes) | 60 |
| LED indicators | Power on/off, system ready, errors |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 270 |
| Noise level | Minimal |
| Product dimensions mm (in) | 19" rack W x 3U H x 500D (19W x 5.25H x 19.6D) |
| Product weight kg (lbs) | 10 (22) |
| Shipping dimensions mm (in) | 720W x 565H x 375D (28.3Wx 22.2Hx 14.7D) |
| Shipping weight kg (lbs) | 14 (31) |
| Operating temperature ºC ( ºF) | 15 to 35 (59 to 95) |
| Inlet connection | 1/4" OD Swagelok or 6 mm OD rapid fitting |
| Outlet connection | 1/8" OD Swagelok or 4 mm OD rapid fitting |
