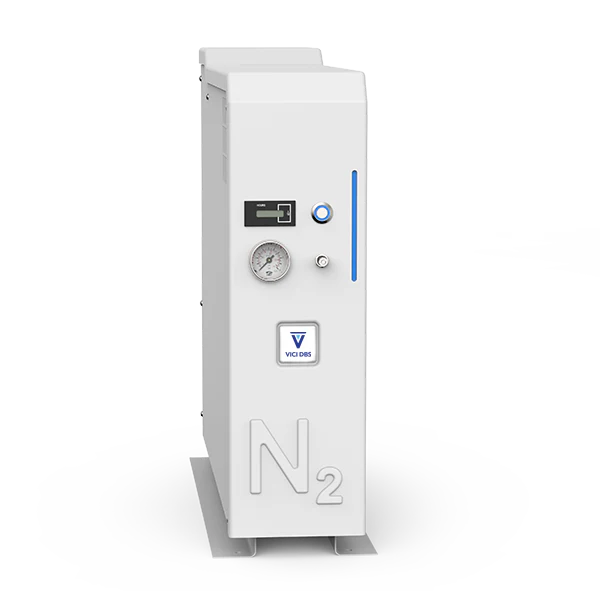

The new HP 750 Tower Nitrogen Generator produces nitrogen by utilizing a combination of filtration and pressure swing adsorption (PSA) technology. Standard compressed air is filtered by high-efficiency coalescing filters to remove all contaminants down to 5 µm. The air then passes through two columns filled with a proprietary blended carbon molecular sieve (CMS) which adsorbs O2, CO2, and moisture. These are desorbed to the atmosphere during the pressure swing cycle leaving a supply of ultra-pure nitrogen.

The guaranteed flow rate of pure nitrogen is 750 mL/min.

HP 750 TOWER FEATURES:
▪︎ Flow rate 750 mL/min
▪︎ Purity >99.999%
▪︎ Pressure up to 5 barg (75 psig)
▪︎ Space-saving design
▪︎ Proprietary carbon molecular sieve
▪︎ Ideal for TGA & DSC applications
▪︎ 2 year standard warranty
